Controlled Shear Rate (CSR) - selecting a speed

Controlled Shear Stress (CSS) - selecting a force/area

Relative Measuring Systems - Standard - Spindles, Vane-Spindles, Helipath-System

Absolute Measuring Systems - Coaxial Cylinder, Cone/Plate, Plate/Plate, Spiral-Adapter

Viscosity Range: approx. 0.5 to 1,000,000,000 mPa.s

Temperature Range: to 300°C

Shear Rate: 0.01 to 13,333 1/s

See the full range of Viscosity Measurement products on our online store.

In addition to Instrument Sales we offer:

• Application Support
• On-site evaluation of customer samples
• User Training
• Maintenance, Repair and Service Contracts
• Instrument Spares
• Viscosity Standards
• Instrument Installation, Calibration and on site IQ/OQ

Displayed Info:
- Viscosity (cP or mPa•s)
- Temperature (°C or °F)
- Shear Rate/Stress
- % Torque
- Speed/Spindle

Built-in Options
- Timed Tests
- Choice of Units
- Choice of Speeds

Scroll Keys for Simple Selection of Speed & Spindle

54 selectable speeds provide
superior range of viscosity/shear
rate measurements

Accuracy: ±1.0% of range

Repeatability: ±0.2%

Built-in RTD Temperature Probe

Auto Range Showing
- Full Scale Range (FSR)
at 100%
- Maximum viscosity measured
with Spindle/Speed
combination

Bi-directional RS-232
PC Interface provides optional
computer control and automatic data gathering capability

Download custom test programs
with DV Loader software
(included with instrument)

View DV-II+™ Pro Viscometers online

What’s Included?

Instrument
6 spindles (RV/HA/HB) (p45)
or 4 spindles (LV) (p45)
DV Loader software E
RTD Temperature Probe
Spindle Guard Leg*
Lab Stand (Model S) (p50)
Carrying Case
*Not applicable to HA or HB torque models

Optional Accessories

-Rheocalc32 Software E
-Wingather Software E
-Ball Bearing Suspension (RV/HA/HB) (p50)
-Viscosity Standards (p52)
-RV/HA/HB-1 Spindle (p45)
-EZ-Lock Spindle Coupling System (p50)
-Quick Action Lab Stand (p50)
-Temperature Bath (p33-35)
-Small Sample Adapter (p38)
-UL Adapter (p40)
-Thermosel (p36)
-Helipath Stand with T-bar Spindles (p42)
--Spiral Adapter (p44)
-DIN Adapter (p44)
-Quick Connect/Extension Links (p49)
-Vane Spindles (p43 & 48)
-Protective Keypad Covers (p51)

† 1 cP achieved with UL Adapter accessory. 15 cP on LV with standard spindles.
†† Minimum viscosity is achieved with optional RV/HA/HB-1 spindle.
M = 1 million cP = Centipoise mPa•s = Millipascal•seconds

	Connect DV-II+Pro to a PC to create up to 10 custom tests on your PC and then download test parameters to your viscometer

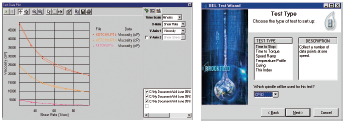

Rheocalc32 Software Optional
GET TOTAL CONTROL OF YOUR INSTRUMENT AND TEST PARAMETERS

Automatically control and collect data with Rheocalc32 and a dedicated computer.
Rheocalc32 can analyze data, generate multiple plot overlays, print tabular data,
run math models and perform other time-saving routines. Data can be saved in the
program or exported to Excel.

- Controls test parameters with powerful scripting capabilities
- Wizard for self-guiding creation of test programs
- Looping functions for repetitive tasks
- Automates data collection to save time
- Math modeling for yield stress calculations, plastic index
- Plot up to four data sets for comparisons

Wingather Software Optional
DATA COLLECTION SOFTWARE TO COLLECT, ANALYZE AND RECORD TEST DATA

Wingather software provides an easy way to gather data and plot graphs while creating
permanent test records. Data can be saved in the program or exported to Excel.
- Automates data collection to save time
- Reduces operator error
- Math modeling for yield stress calculations, plastic index
- Plot up to four data sets for comparisons

DV-II+Pro CP

The DV-II+Pro is available in a
Wells/Brookfield Cone & Plate Version
Must be ordered when instrument is
first purchased. (p16)

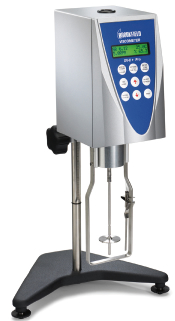

DV-II+Pro EXTRA™
Viscometer

The “EXTRA” combines all the
versatile viscosity testing capabilities
of a DV-II+Pro with time and money
saving features such as a durable ball
bearing suspension system, EZ-Lock
Spindle Coupling, Quick Action Lab
Stand and FREE Rheocalc software.

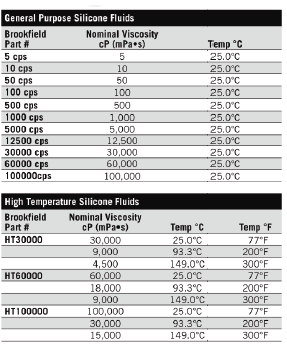

Silicone Viscosity Standards

These fluids are most commonly used to verify calibration of Brookfield Viscometers/Rheometers.

Accuracy: ±1% of viscosity value Excellent temperature stability Recommended for use with Brookfield and most other rotational viscometers Most economical Special viscosity values and temperature calibrations available upon request

VisCal Kit The Brookfield VisCal Kit provides all the necessary items to verify calibration of your Viscometer/Rheometer. Includes Brookfield 600mL Beaker, 1 pint of Silicone Viscosity Standard, Dispersing Bottle for cleanup and Trapper Cleaning Agent.* *Trapper Cleaning Agent available only in shipments within the USA

Plastic VisCal Kit The Brookfield Plastic VisCal Kit provides all the necessary items to verify calibration of your Viscometer/ Rheometer in a glass-free environment. Includes Brookfield 600mL Plastic Beaker, 1000ml of Silicone Viscosity Standard (5-12,500 cP) in a plastic bottle and a Brookfield designed metal lid for anchoring beaker in the temperature bath.

Special Order Silicone Fluids

For our customers needing a nonstandard viscosity or temperature range, our silicone fluids can be modified to meet most requirements.

VISCOSITY BLENDS CALIBRATED AT 25°C (77°F)
- Minimum: 5 cP (mPa•s)
- Maximum: 60,000 cP (mPa•s)
- Blends will be within ±2% of requested value

TEMPERATURE CALIBRATIONS
- Minimum: 10°C (50°F)
- Maximum: 80°C (176°F)
- Minimum temperature increment: 2°C

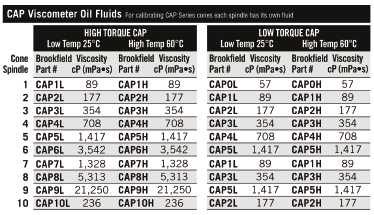

HOW TO SELECT A CAP FLUID
- Determine which viscometer is being used: High Torque or Low Torque.
- Determine which temperature model is being used:
Low Temperature (5°C-75°C) or High Temperature (50°C-235°C)
- Determine which cone is being used.

A full complement of services are available

• Application Support
• On-site evaluation of customer samples
• User Training
• Maintenance, Repair and Service Contracts
• Instrument Spares
• Viscosity Standards
• Instrument Installation, Calibration and on site IQ/OQ

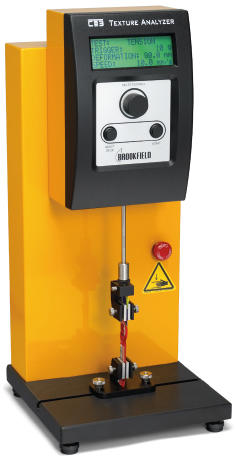

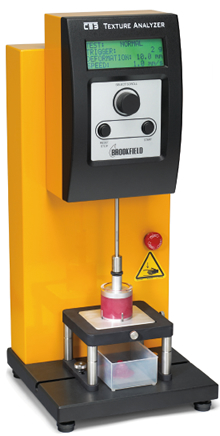

Texture Loader Software
allows up to ten custom tests
and ability to lock parameters

Compression distance
up to 10cm, can accommodate
sample up to 22.5cm, almost 9 inches tall. Probe shaft is 8cm from back wall.

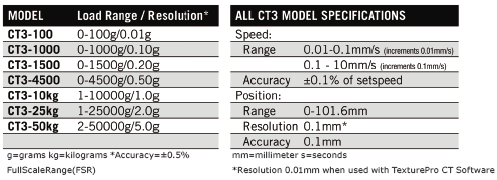

Choice of Load Cells
7 measurement ranges up to 50kg

Choice of Base Tables
allows for larger samples and
more accessory choices

What’s Included?
Instrument with choice of load cell
Texture Loader Software
USB Cable

What’s else do I need?
Rotary Base or Fixture Base Table (see below)
At least one probe or test fixture

Optional Accessories
The CT3 has a wide variety of probes, fixtures and jigs which enable it to be very versatile. Brookfield can also custom design a fixture and probe for most applications.

TexturePro CT Software TA-CT-PRO-AY
Temperature Probe DVP-94Y
Bubble Level TA-LVL
Calibration Weight Set
Gelatin Bath System for gel conditioning
Bloom Jar - industry approved TA-GBB-2

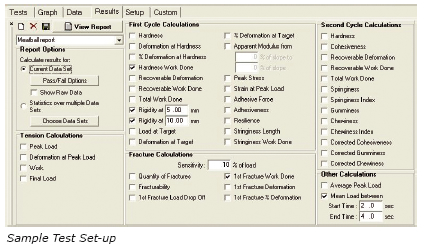

While the CT3 can perform many tests in stand alone mode, use of TexturePro CT Software permits creation of multiple tests and automatic execution without operator involvement.

Easily create custom reports and graphs right from the menu screen.

- Sample identification set-up screen helps new operators quickly get started; test
fields outline a variety of parameters

- Intuitive set up for test methods and database file structures in a single window

- Data is captured as a graph and stored in tabular database format

- Advanced data analysis with built-in parameter calculations such as springiness, chewiness, hardness and much more!

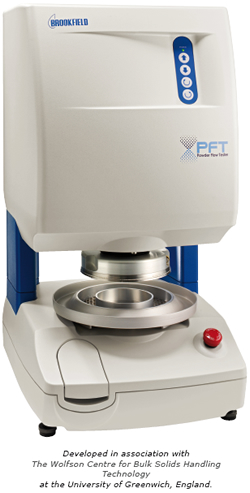

Tension Mode
provides tensile testing capability

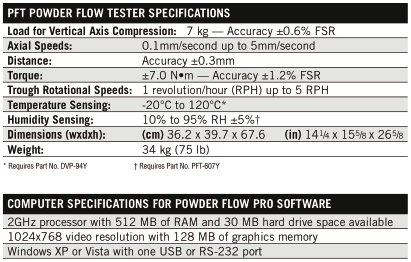

What’s Included?

Instrument
Powder Flow Pro Software
with USB Cable
Standard Volume
Accessory Kit:
- Trough 230 cc
- Vane Lid 33cc
- Wall Friction Lid 304 s/s
- Outer Catch Tray
- Inner Catch Tray with Scraper Tool
- Powder Scoop
- Cleaning Brush

Optional Accessories

Wall Friction Lids
in Milsd Steel, Tivar 88 or special order
Temperature Probe
Humidity Sensor
Small Volume Accessory Kit
-36cc trough
-7cc vane lid
Sieve Kit
Standard or Small Volume
Carrying Case for easy transport
Sand Castle Demonstration Kit
Powder Flow Demonstration Kit

Testing Service
"We will test your samples for you"

To assist you in the evaluation of your powder for flow behavior, Brookfield offers a testing service prior to purchase. Provide Brookfield with samples of your product to obtain a complete test report. Data is presented in both graphical and tabular format for easy analysis and interpretation. The following example shows the report format and type of information that is presented.

STANDARD TESTS
This report follows four samples sent to our lab for evaluation. The specific graph for each sample is color coded for easy identification. Up to eight data sets can be shown on the same graph.
