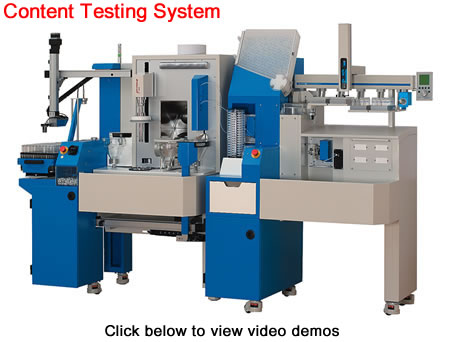

Sotax CTS Content Testing System

The SOTAX Content Testing System is a reliable, multi-tasking, automated workstation for Content Uniformity, Composite

Assay and Blend Uniformity for up to 120 samples of tablets, capsules, pellets, powders, effervescent tablets or liquid Suspensions



Features

The SOTAX automated Content Testing System is manufactured with high quality, inert materials such as PVDF, stainless steel, Teflon, glass and PEEK.Efficient cleaning design eliminates carry-over between tests.

Outstanding accuracy and reproducibilityFlexible design concept allowing for customized requirementsUnique rotating solvents input station allows the insertion of powder into the solvent without residue.

Dilution ratios of up to 1:40,000 can be performed, Sample weights and dilutions are gravimetrically confirmed and recorded with 4 place balances.

Choice of up to 8 different media for a maximum flexibilityEasy validation of hardware and softwareEasy re-injection of fractioned samples into HPLC at any time.

Homogenizer tool without bearing in contact with solvent.



Optional accessories

• UV/VIS spectrophotometer for on-line sample readings



• Complete waste management with level control



• Extraction hood



• Barcode reader for common industry formats



• Peltier-cooled off-line sample racks



• Evaporation-resistant caps



• Up to 240 samples in 16 x 150mm tubes or up to 80 samples in 32 x 115mm tubes



• LIMS functionality

Validation, qualification and service support

System qualification documents (IQ and OQ) are supplied with each system

Software is delivered with IQ documents and all validation certificates; where required, an OQ of the software is also available

Training is exclusively carried out by a certified SOTAX service engineer

The unique vessel handling device allows making a parallel process of up to 3 samples.

With the unique cleaning design, less than 50 ml of organic solvent is required for a complete runVessels are dried before the start of the next sample preparation to prevent carry-over contamination

The above combine to give the fastest and most reliable system for automated Content Uniformity testing and Composite Assay on the market.

View Content Testing Range

Any further questions? Please contact: sotax@carlstuart.com
