SpectroFlex

Buy a SpectroFlex 6100 and get ANY 4 reagent kits free

OR

Buy a spectroFlex 6600 and get 6 reagent kits free

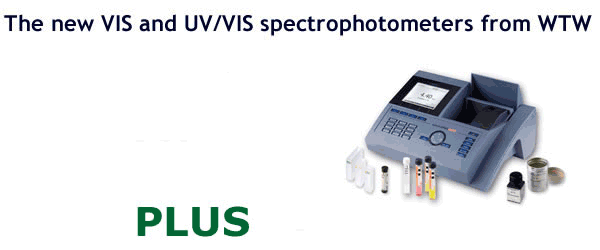

Carl Stuart is proud to present a new range of photometers designed by world leader in electro-chemical and optical measurement market, WTW. spectroFlex 6100 and spectroFlex 6600 are the unique combination of systematic and spectral analysis in the respective class of spectrophotometers. The spectroFlex Series complements the highly precise photoLab Series, with the following well proven benefits and improved features:

  • Over 150 methods available from COD, TOC, Nitrogen and Phosphorous to Heavy Metals


  • Universal in use from water to wine analysis or education


  • Methods for SAK in waste and drinking water


  • Scans, kinetics and multi wavelength measurements


  • Extensive evaluation functionalities, e.g. min./ max. recognition, spectra addition and subtraction, peak area determination, derivation, smoothing, multiplication by constants


  • Test kits with automatic barcode recognition from handy cell test to reagent tests for trace analysis in drinking water


  • Comprehensive Analytical Quality Assurance (AQA)


  • 2 USB interfaces


SpectroFlex 6100 is developed for measurements in the range of 320 - 1100 nm and offers best optical properties in it’s class for comfortable and precise measurements of test kits up to complete scans. Ideal for all routine measurements and seminars – including scan functions for absorbance measurement and kinetics!

SpectroFlex 6600 with a wavelength range of 190 - 1100 nm for all, who do need the complete UV-VIS range and do not want to miss complete scan functions besides the routine measurements. Also ideal for schools and universities.

Technical Data
 SpectroFlex 6100SpectroFlex 6600
Wave length range 320–1100 nm 190–1100 nm
Technics Single beam with optical cuvette failure elimination
Lampe Tungsten Xenon Flash
Band width 4 nm
Measurement modes Concentration, absorbance, transmission, kinetics and spectra with abs. and % transmission, multi wavelength
Spectra/ Scans Scans in 1 nm steps for freely defined wave length range
Barcode Automatic receoxgtenrintiaoln b oafr cModeerc fko ar nodth WerT tWes tcso adnedd sraomunpdle a-InDd orpectitoannaglular cuvettes,
Cuvettes 16 mm round, rectangular 10 mm, 20 mm, 50 mm with automatic recognition, no adapter needed
Display Backlit graphic display for comprehensive data evaluation
Data storage 1000(3 v0a0lu –e9s;0 f0o rn smp)e catnrda +4 0k0in keitnicest iacps pwriothx. 145 M0 vBa =lu e1s0 0ea scphectra
Methods and profiles 10o0v eurs e1r5 d0e pfirnoegdr ammemthaobdles , m20et hporodfsil e(sst eaartcinhg f owr ikthin aeptipcsr o+x .s p5e0c)t,r a
Update via Internet und USB-Stick
Interfaces 1 USB-A, 1 USB-B, 1 RS232
Protection class IP31 and drain in optical compartments
Power supply Country specific cables (EU continental, GB, US, AUS)
Temperature Operating temperature +10°C to +35C, storage -25°C to +65°C
Dimensions 404 x 197 x 314 mm (WxHxD)
Weight approx. 3.7 kg w/o power supply
Accessories (Q4/2007) PC-Software for easy data evaluation, rechargeable battery for UPS and portable use with ECO mode


Order Information
TypeDescriptionArticle No.
SpectroFlex 6100 Spectrophotometer (VIS) for spectral and routine analysis in the range of 320 - 1100 nm with AQA-Support; 2 USB interfaces X - 250201
SpectroFlex 6600 Spectrophotometer (UV/VIS) for spectral and routine analysis in the range of 190 - 1100 nm with AQA-Support; 2 USB interfaces X - 250202


For further information on any of our Photometer offers, please Contact Us directly with your enquiry
