Advancing Water Quality Profiling with Modern Aquatic Monitoring Systems

Water is among the planet’s most vital resources — yet beneath its surface lies a constantly changing world that is difficult to observe directly. Subtle variations in temperature, oxygen, and nutrient levels may go unnoticed, but their long-term effects on aquatic ecosystems, biodiversity, and overall water quality are profound.

For over a century, scientists have sought to understand these hidden dynamics. Early hydrological studies depended on manual instruments such as water samplers paired with reversing thermometers. In contrast, today’s research relies on sophisticated, multi-sensor platforms that continuously capture real-time data. Multiparameter sondes equipped with optical sensors for turbidity, chlorophyll, and cyanobacteria (blue-green algae) provide unparalleled insight into the full depth of aquatic environments.

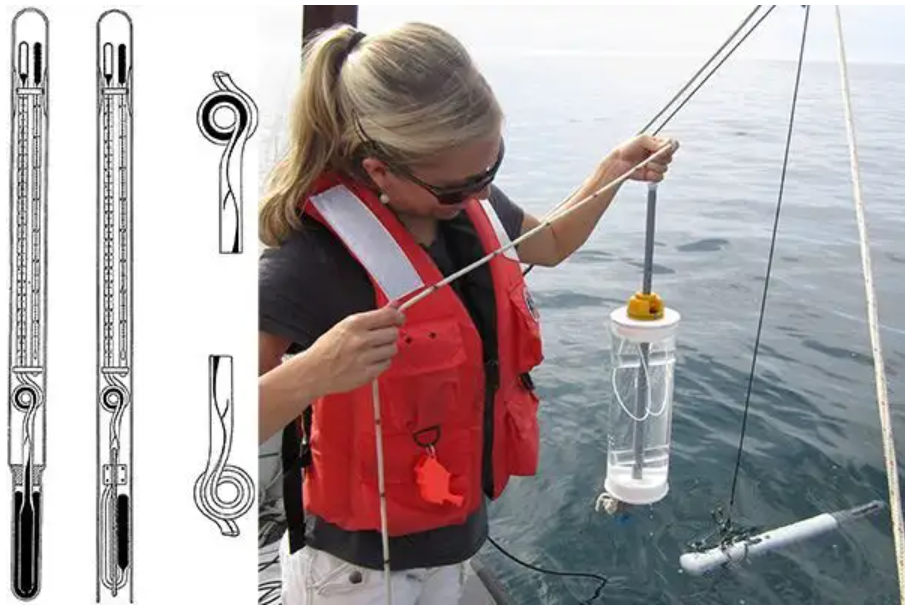

Left image: Reversing thermometers once captured temperature readings at specific depths by inverting 180°, breaking the mercury column to preserve the result. Photo: University of California, The Oceans, Their Physics, Chemistry, and General Biology.
Right image: A Kemmerer sampler — a classic device used to collect discrete water samples for lab analysis. Photo: USGS.

Advancing Water Quality Profiling with Modern Aquatic Monitoring Systems

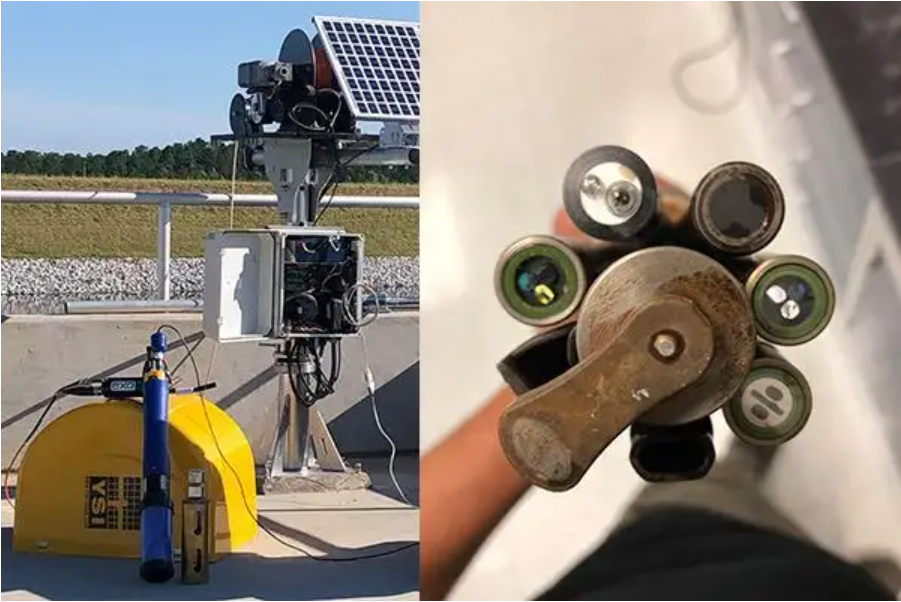

Left image: An autonomous YSI vertical profiler stationed on a reservoir intake, with an EXO3 Sonde in view.

Right image: Multiple YSI EXO3 Sonde integrated on a vertical profiling system for continuous, multi-parameter data collection.

Accurate water quality profiles are indispensable for effective decision-making in drinking water treatment facilities. These measurements influence every stage of the process — from intake depth selection to treatment efficiency. Whether deployed in lakes, reservoirs, estuaries, or coastal environments, modern monitoring systems simplify environmental tracking, provide early alerts of change, and support evidence-based ecosystem management.

Designed for reliability and real-world use

The YSI Vertical Profiling System combines robust engineering with cost efficiency. It is built for continuous, unattended operation — delivering high-quality data across the water column while minimising maintenance demands. Environmental managers, researchers, and conservation professionals can rely on this system for consistent, actionable insights that help safeguard both freshwater and marine environments.

Advancing Water Quality Profiling with Modern Aquatic Monitoring Systems

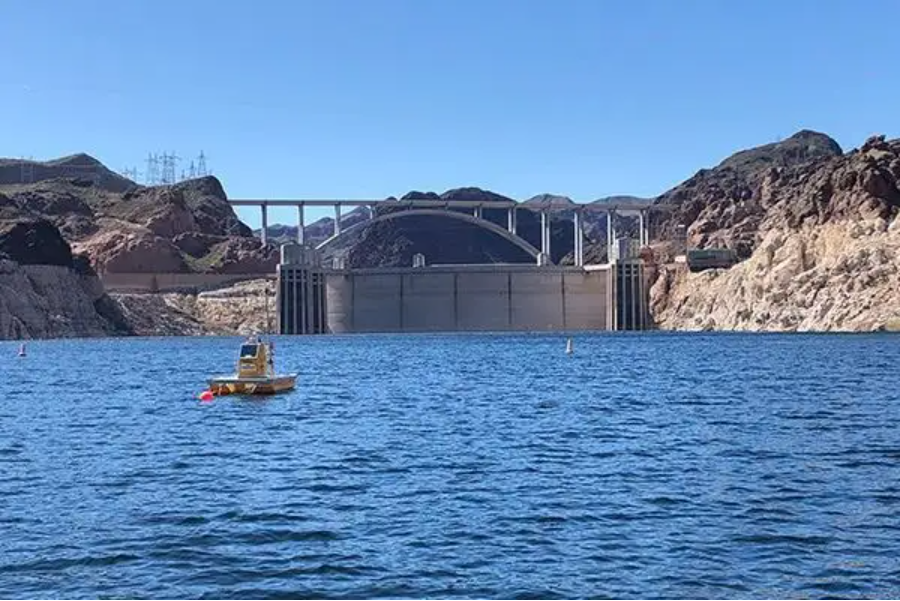

YSI Pontoon Vertical Profiling System on the Colorado River, with the Hoover Dam in the background.

The modular framework enables easy upgrades as technologies evolve. Its 12 V power source can be recharged via mains electricity or solar panels, while optional dual batteries and expanded solar arrays ensure reliable performance even at high latitudes.

At the core of the system is a precision data logger that integrates seamlessly with the YSI EXO Sonde. This high-efficiency device offers:

Long-term deployment stability
Intuitive configuration and maintenance
Low power consumption for remote sites

The data connection uses a lightweight, aramid-fibre-reinforced cable — the same tough material employed in remotely operated vehicles — ensuring exceptional durability. The YSI EXO Sonde supports a wide suite of sensors, including the NitraLED optical nitrate sensor, a preferred choice for reservoir profiling.

Additional modules can be added for meteorological and environmental data, such as wind speed, rainfall, humidity, solar radiation, hydrocarbon detection, algal optical monitoring, or even video surveillance. Pontoon profilers accommodate these through deck portholes, bow rollers, or mast mounts, while buoy profilers provide similar versatility.

Advancing Water Quality Profiling with Modern Aquatic Monitoring Systems

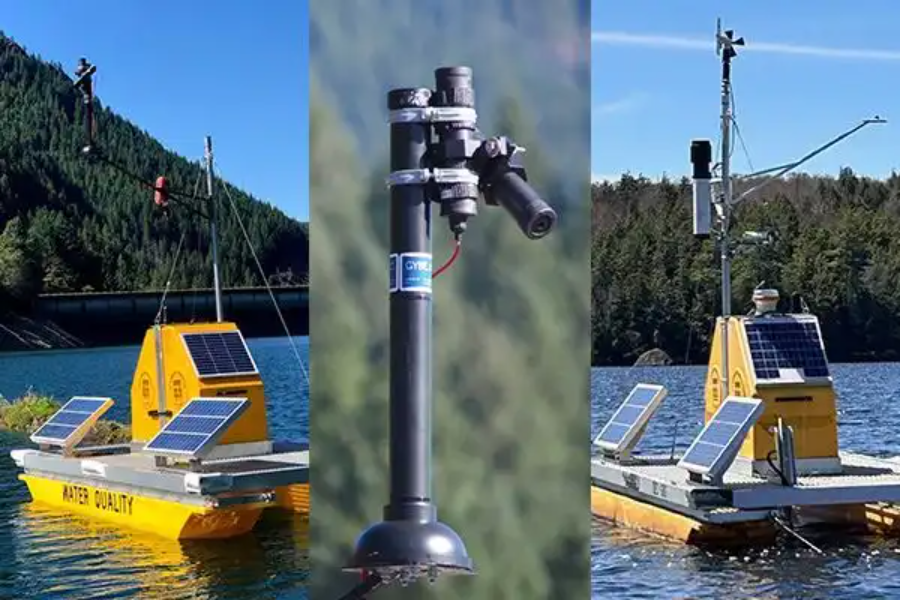

YSI pontoon profiler configured with experimental algal monitoring optics and meteorological instruments.

Adaptable to Every Site

Thanks to its modular construction, the YSI system can be installed on fixed platforms (piers, docks, or dams) or deployed on floating pontoons and buoys.

For more challenging environments—such as high-flow rivers—protective configurations like stilling wells and cable sledges ensure the EXO Sonde remains stable and secure.

Advancing Water Quality Profiling with Modern Aquatic Monitoring Systems

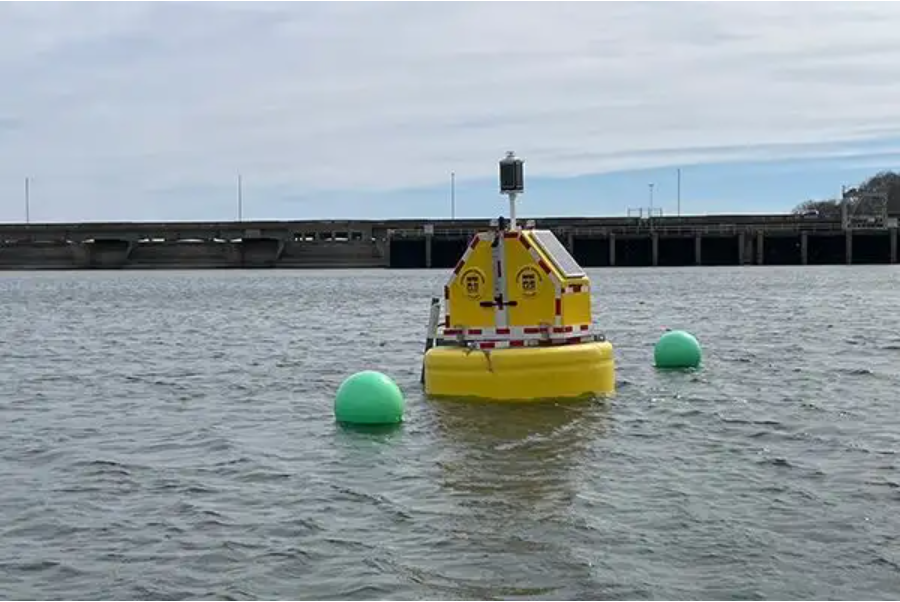

YSI Buoy Vertical Profiling System near Grand River Dam, Oklahoma, USA.

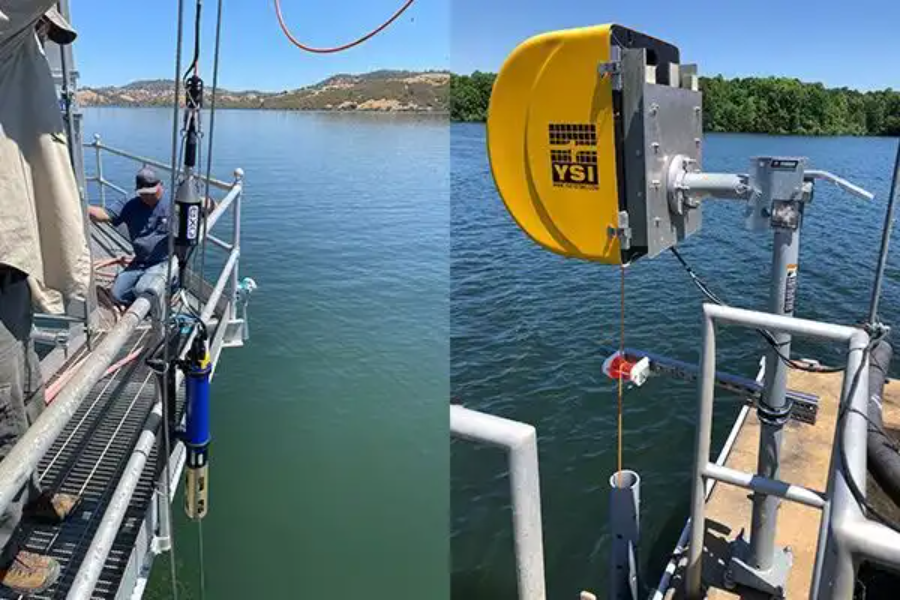

Left image: EXO3 Sonde mounted on a sledge with guide cable.
Right image: EXO3 Sonde housed in a structure-mounted stilling well.

Data communication options are equally flexible. Depending on location and transmission needs, systems can operate via Ethernet, radio, cellular networks, or satellite links — enabling continuous remote data access.

Both pontoon and buoy profilers have demonstrated exceptional performance under tough conditions, from windy, high-altitude reservoirs to regions with extreme water-level fluctuations. Mooring systems can be customised from standard two-point to four-point configurations or upgraded to a pulley-based self-adjusting system. The pontoon’s broad, stable platform also allows two operators to perform safe on-site maintenance.

Advancing Water Quality Profiling with Modern Aquatic Monitoring Systems

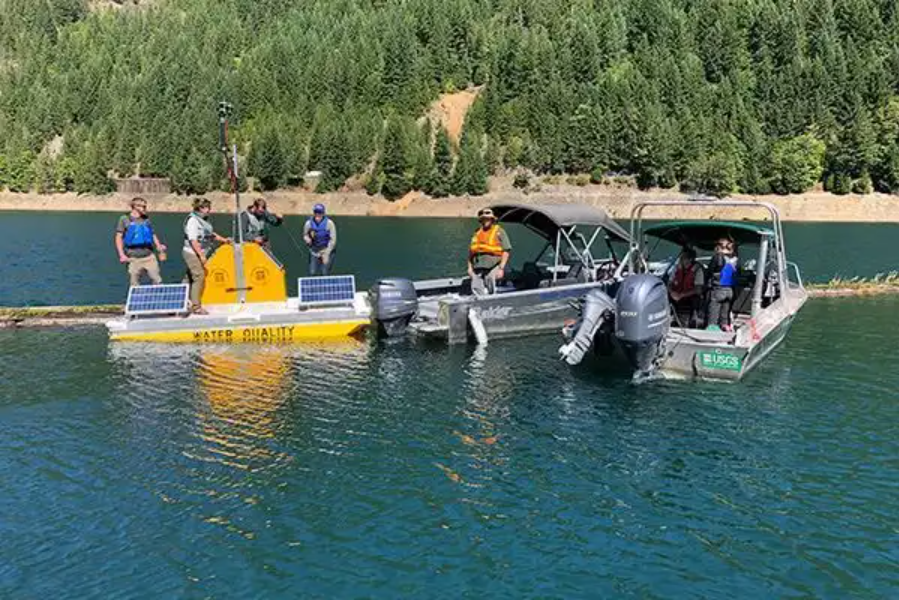

YSI Pontoon Vertical Profiling System at Beaver Dam, Oregon, USA.

A Smarter Future for Water Monitoring

As global demand for accurate, real-time water quality data increases, advanced aquatic monitoring systems are becoming central to sustainable resource management. The YSI Vertical Profiling System embodies the next generation of monitoring technology — robust, modular, and ready for remote operation in the most demanding environments.

Whether the goal is environmental research, drinking water protection, or climate resilience, this system empowers users with precise insights to preserve aquatic health today and for generations to come.

Discover the benefits of YSI water quality profiling systems with Lab Unlimited - your partner in reliable aquatic monitoring solutions. Contact us today to speak with our experts.
