Flow Vision Software

Flow Vision Software by Alicat is used for flow and pressure control to provide intuitive interfaces to get the most out of the devices you own when connected to a computer. The Flow Vision SC can gain control of up to 26 Alicat instruments at a time, complete with scripting, and logging capabilities. The Flow Vision MX for simple gas mixing applications for up to 10 mass flow controllers. These editions work well with multi-drop breakout boxes that simplify connections to the computer.

Flow Vision SC™ Software

Flow Vision SC manages up to 26 Alicat Flow and Pressure instruments at one time to help create your own local network. The programme interface has either RS-232 or RS-485 communications protocols and the graphical user interface in Flow Vision SC provides:

• Automatic configuration
• Session saving for easy configuration and experiment setup reloads
• Data capturing and logging (including a graphing tool)
• Simple and advanced script building for automating meter and control command sequences
• Software alarms
• Support for multiple devices

Flow Vision SC allows for easy access to the gas calibration selector, address assignment to individual devices, and PID loop tuning. Adjustments to the PID control loop can increase the speed of response and stability within your application.

Downloads and System Requirements:

Flow Vision SC is available below as an immediate software download and requires a software key to function. Please contact a member of our sales team to request a free trial 30-day software key or to purchase the software. Flow Vision SC runs on Windows® 7 or above.

• For Windows 7 or above, download Flow Vision SC(v. 1.3.38)
• For Windows XP/Vista, download Flow Vision SC(v. 1.1.60)
• Download Flow Vision SC user manual

System Requirements:

• Microsoft Windows 7, Windows 8/8.1, Windows 10
• Microsoft .NET Framework
• 18 MB hard disk space

Flow Vision Script Converter:

Flow Vision Script Converter allows you to convert older Flow Vision 3 scripts to a format recognized by Flow Vision SC.

• Download Script ConverterZip file (1.2 MB)

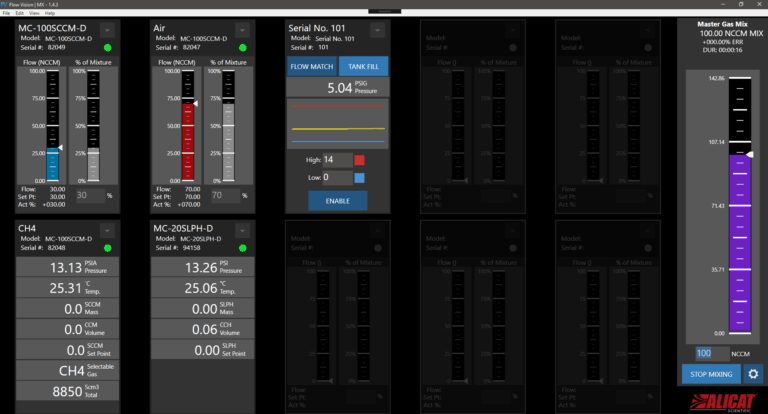

Flow Vision MX™ Gas Mixing Software

Flow Vision MX is used for setting up a basic gas-mixing station at a low-cost. Users can easily configure up to ten mass flow controllers. Individual mixtures can be saved for easy loading, you can log data to review mixture accuracy and performance and adjust the total mixture percentage or the percentage of a single controller or multiple controllers.

Downloads and System Requirements:

Contact a member of our sales team today if you are interested in receiving a copy.

Download Flow Vision MX user manual

System Requirements:

• Microsoft® Windows Vista, Windows 7, Windows 8/8.1, Windows 10
• Microsoft .NET Framework
• 10 MB hard disk space

Want to know more about the Flow Vision Software?

If you wish to know more about the Flow Vision Software, contact a member of our sales team today and they will be happy to help!
